Improve field leveling efficiency with optional GPS RTK & laser automatic control systems. Telescopic working width 2-5 m, ±2.5 cm RTK positioning accuracy.
Two-arm drawbar towing — quick hook-up to 70-180 hp tractors of all major brands.
Heavy-duty cylinders with PWM automatic control for continuous blade adjustment.
Blade extends 2-5 m across three models to match your fields and tractor.
Reinforced construction, protected hose routing, built for seasons of heavy work.
W20 GNSS auto leveling, ±2.5 cm RTK positioning, flat & slope modes.
Budget-friendly laser land leveler control for smaller, flat fields.
Standard wear parts, accessible grease points, spare parts always in stock.
Export packing, full documentation and sea freight to your nearest port.
One operator, one tractor. Automated blade control removes the need for constant manual correction.
3D terrain planning minimizes cut-and-fill volume and total passes; intelligent soil unloading prevents engine stalling.
Uniform fields distribute water evenly — properly leveled fields can cut irrigation water use by up to 30-40%.
No more waterlogged or dry zones. Level fields give uniform emergence and a better harvest.
5-10 minute setup and high daily productivity get your fields ready days earlier than manual methods.
±2.5 cm GNSS positioning accuracy on flat, single-slope and dual-slope terrain — a land grading machine that stays on grade.
Every leveler can be equipped with either guidance option. For most operations we recommend the GPS RTK version for its range, slope capability and long-term efficiency.
10-inch display with real-time 3D terrain map. Flat, single-slope and dual-slope modes. Unlimited satellite working range, all-weather day-and-night operation, 5-10 minute setup.
Proven, budget-friendly control for smaller, mostly flat fields. ±2-3 cm accuracy with 300-400 m working range per setup. Flat leveling only.

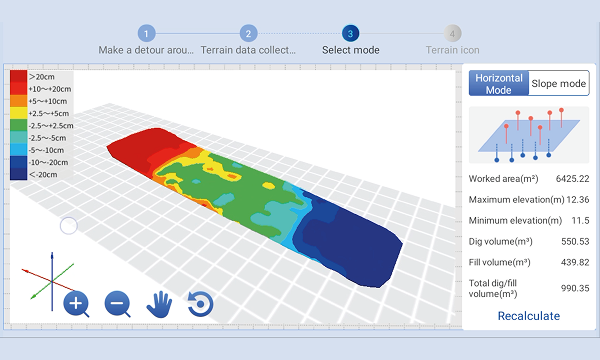

One survey run creates a color-coded 3D elevation map, and the system automatically calculates the optimal leveling model to minimize cut-and-fill. Intelligent soil unloading redistributes excess soil in real time, and the tripod base station keeps you working with radio communication — no internet required.
| Parameter | 12PM-3000 | 12PM-4000 | 12PM-5000 |
|---|---|---|---|
| Working Width | 2000-3000 mm | 2500-4000 mm | 3000-5000 mm |
| Weight | 1.4 t | 2.4 t | 2.8 t |
| Matched Tractor HP | ≥70 hp | ≥100 hp | ≥180 hp |
| Blade Width (Transport) | 2150 mm | 2640 mm | 3100 mm |
| Hydraulic System | Tractor-supplied hydraulics, PWM automatic blade control | ||
| Guidance System | W20 GPS RTK Recommended / Laser system optional | ||
Backed by deep cooperation with the manufacturing factory.
Your brand, your colors, your market.
Every machine tested before loading.
Small orders ready in about 7 working days; larger orders scheduled by agreement.
Documentation, packing and freight handled.
Video call installation guidance.
Wear parts in stock, fast dispatch.
Full machine warranty, lifetime software upgrades.
Every hydraulic land leveler is welded, assembled and inspected in the manufacturing workshop we work with deeply. Frames are jig-welded for alignment, hydraulic lines are pressure-tested, and every guidance system is bench-tested before packing.
Our own inspectors check each machine against the export order — welding quality, paint finish, hydraulic function and GNSS calibration — before it is loaded for sea freight.
Our MOQ is 1 unit. Distributors and project buyers receive tiered pricing for multiple units — send us your quantity for a detailed quotation.
For small quantities, production takes about 7 working days after deposit confirmation. For larger orders, the production schedule is negotiated and confirmed in your quotation. Sea freight transit time depends on your destination port; we provide the full schedule with your quotation.
Every machine carries a one-year warranty. The W20 guidance system additionally receives lifetime software upgrades.
Yes. We can supply machines under your brand with your colors and documentation. Contact us with your requirements for details.
The W20 GNSS system uses a tripod-mounted base station beside your field and a GNSS antenna on the leveler. The tablet builds a 3D terrain map and the controller adjusts the blade automatically, guided by ±2.5 cm RTK positioning — on flat, single-slope and dual-slope terrain.
Choose laser for smaller, mostly flat fields on a tighter budget (flat leveling only). Choose GPS RTK for large fields, slope work, all-weather operation and faster setup — most customers choose GPS for its long-term efficiency.
Yes. Blades, hydraulic seals, hoses and wear parts are kept in stock and dispatched quickly by international courier.
Standard terms are T/T: 30% deposit with order confirmation, 70% balance before shipment. Other terms can be discussed for established partners.
Tell us about your fields and tractor — we reply within 24 hours with a model recommendation and detailed quotation.
