1GQN series of rotary tiller is adopted middle gear transmission system, mounted with the tractor through the 3 point suspension. Tractor’s wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. This cultivator can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc.

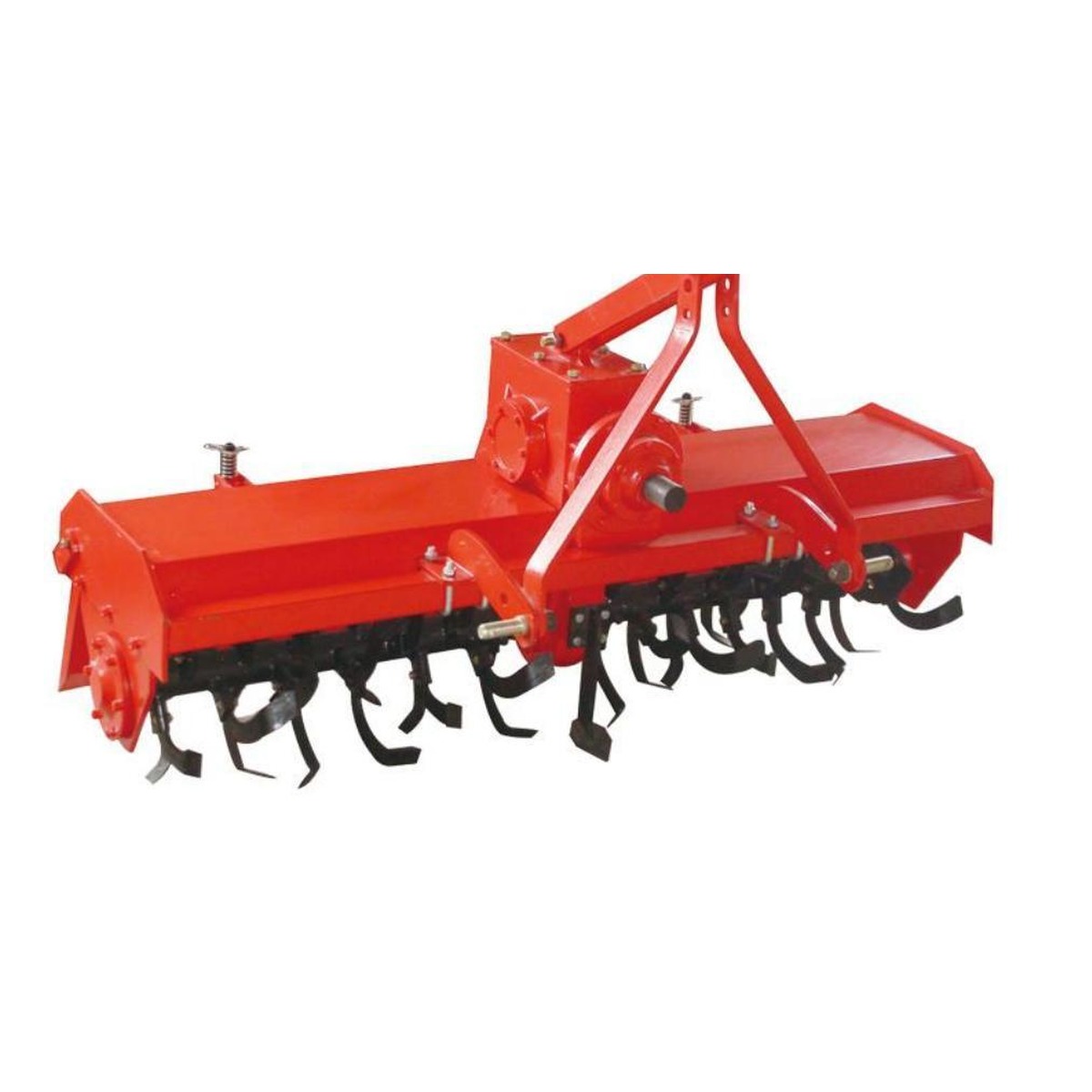

1GQN Rotary Tiller
Contact for Price
-
Model
1GQN-100
1GQN-125
1GQN-140
1GQN-150
1GQN-160
1GQN-180
1GQN-200
1GQN-220
1GQN-250
1GQN-300
+ Show 5 more models
Parameters
| Required Tractor Power | 12-90 hp |
|---|---|
| Working Width | 1000-3000 mm |
| Weight | 190-500 kg |
| Working Depth | 120-180 mm |
| PTO Rotation Speed | 540-720 rpm |
| PTO Shaft Spline | 6 Spline |
| No. of Blades | 18-70 |
| Blade Type | IT225 / IT245 |
| Linkage | Mounted Cat I / Cat II |
| Optional | PTO Transmission Shaft in 8 Spline |
