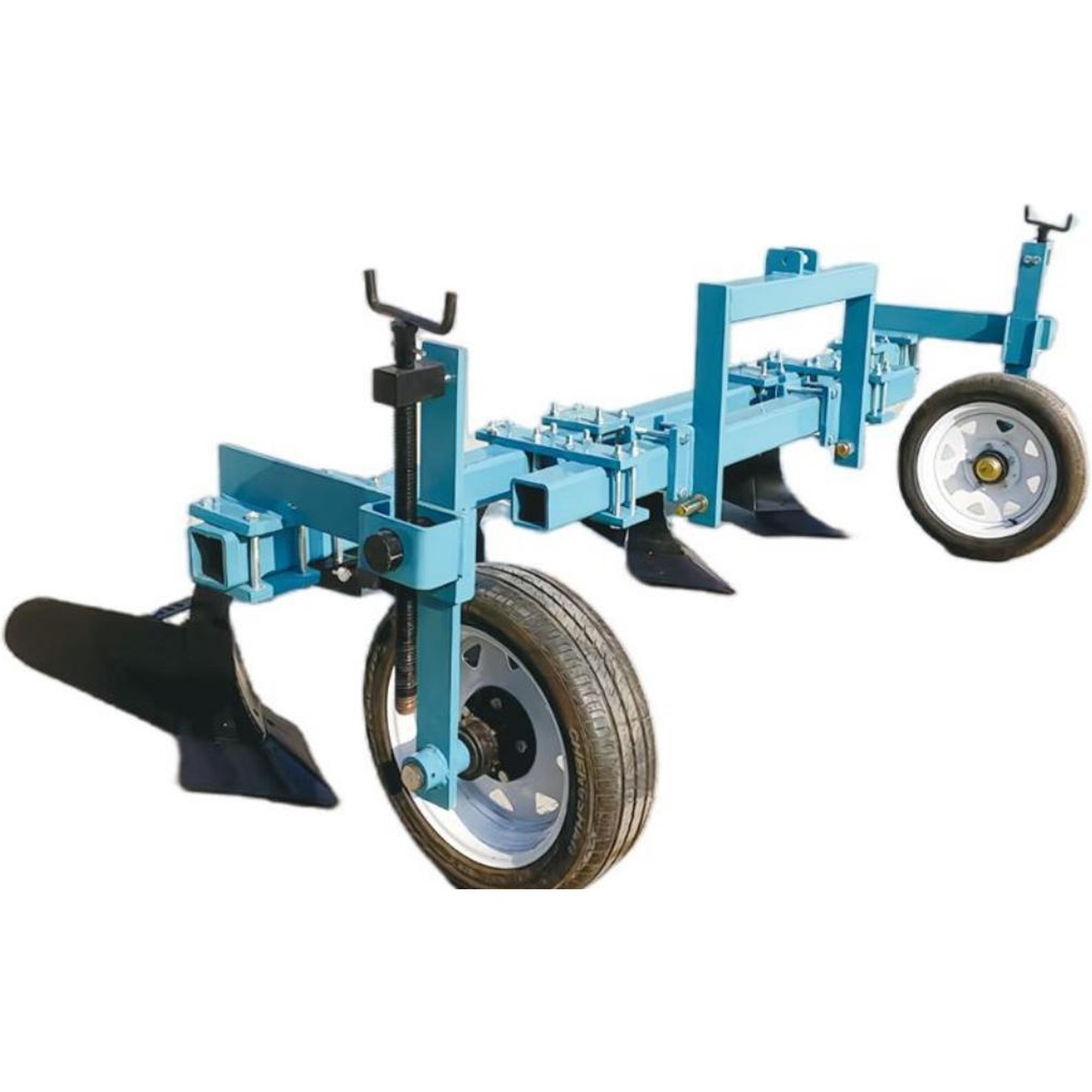

The 3QL-T series tyne ridger is used for ridging in the field after tillage. With 3 to 5 tynes and a working width of 2500 to 3900 mm, it offers adjustable ridging spacing of 700-900 mm and ridging height of 150-300 mm. It matches tractors from 60 to 100 hp with 3-point mounted linkage, and tyres are available as an optional item.
Parameters
| Required Tractor Power | 60-100 hp |
|---|---|
| Working Width | 2500-3900 mm |
| Tyne Qty | 3-5 |
| Ridging Spacing | 700-900 mm |
| Ridging Height | 150-300 mm |
| Linkage | 3-Point Mounted |
| Items Optional | Tyres |
