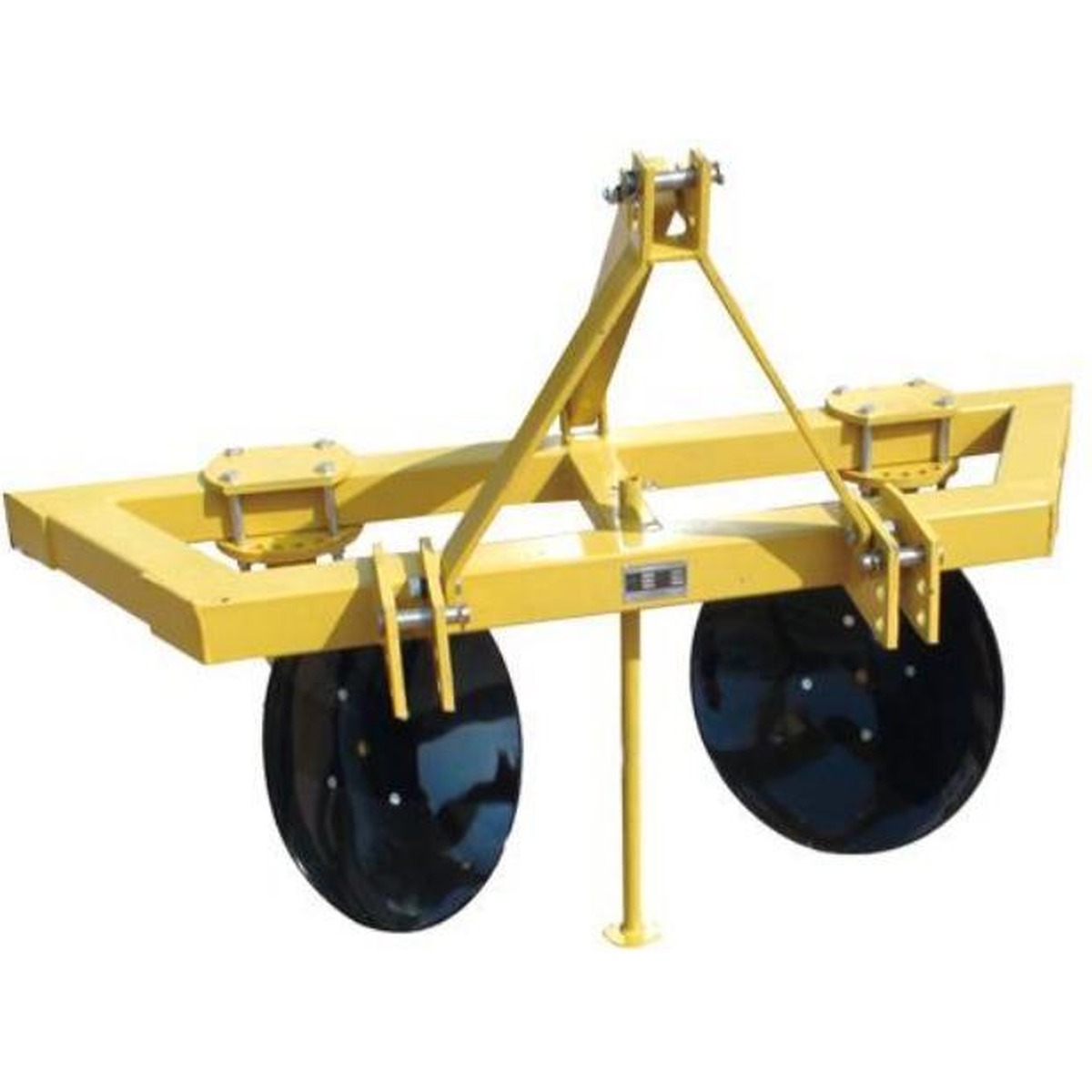

3Z series of disc ridger is suitable for ridging after the tillage in the farm field. It consists of heavy duty tubular box frame, 3 point hitch system and discs. The disc blades are made after the heat treatment in the material of 65Mn spring steel that has better hardness. The machine is reasonable for construction, conveniently to transport, easy to adjust, and conveniently to use and maintain.
Parameters
| Required Tractor Power | 20-110 hp |
|---|---|
| Weight | 140-380 kg |
| Disc Qty | 2-4 |
| Disc Dia. | 510 / 660 mm |
| Ridging Rows | 1-2 |
| Ridging Width | 300-2000 mm |
| Ridging Height | 150-300 mm |
| Linkage | Mounted CAT I / CAT II |
