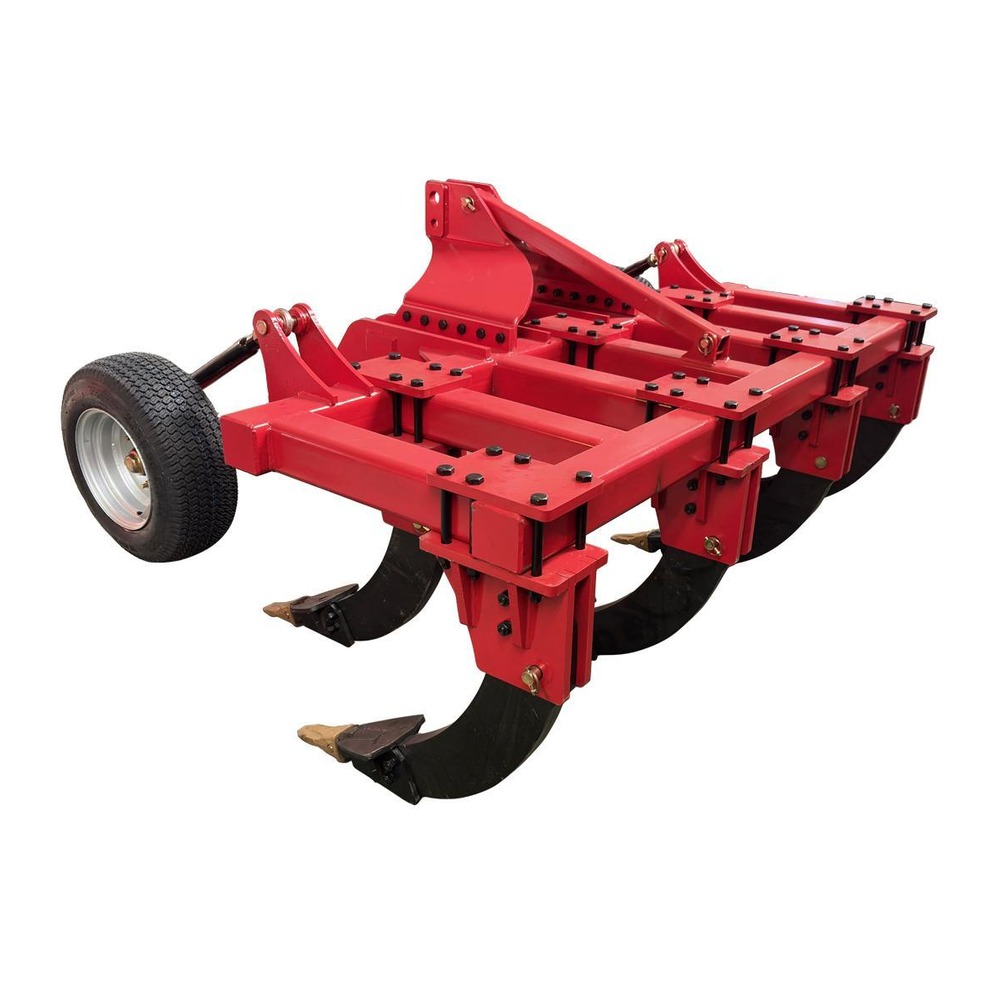

The heavy-duty subsoiler is mainly used for deep soil loosening in farmland. It can effectively break the hardpan layer, improve soil aeration and water permeability, enhance water retention, and promote deeper root growth. It is suitable for soil improvement, dry field preparation, pre-seeding tillage, and deep loosening of compacted soil caused by long-term machinery operation.
A spiked roller can also be added according to working requirements. It helps break large soil clods after subsoiling, press and level the surface, reduce the need for additional tillage, and improve overall field preparation efficiency.
Specifications
| Type | 2RSS-5 | 3RSS-7 | 4RSS-9 |
|---|---|---|---|
| Working Width (mm) | 2000 | 3000 | 4000 |
| No. of Shanks (Optional) | Default: 5 | Default: 7 | Default: 9 |
| Overall Dimensions L x W x H (mm) | 2200 x 1400 x 1300 | 3200 x 1400 x 1300 | 4200 x 1400 x 1300 |
| Square Tube Size (mm) | 120 x 120 (wall 8 mm) | 120 x 120 (wall 8 mm) | 120 x 120 (wall 8 mm) |
| Weight (kg) | 1200 | 1300 | 1400 |
| Supporting Power (hp) | 150-180 | 180-220 | 230-280 |
| Shank Thickness (mm) | 50 | 50 | 50 |
| Hitch Thickness (mm) | 25 | 25 | 25 |
| Tyre Size | 23*8.50-12NHS | 23*8.50-12NHS | 23*8.50-12NHS |
