This series reversible disc plough is constructed to be level swing. It’s suitable for plowing up the dry cultivated land. The discs are rotating forward during work, so the friction from soil is small and the discs are not easy to be wrapped and blocked up by grasses. With the long edge and the good wearing resistance of the discs, it’s easy to plough into the soil and the land surface is level after plowing. The productivity is high and the oil consumption is low. The machine has noticeable advantages for working on the terraced field and small block field.

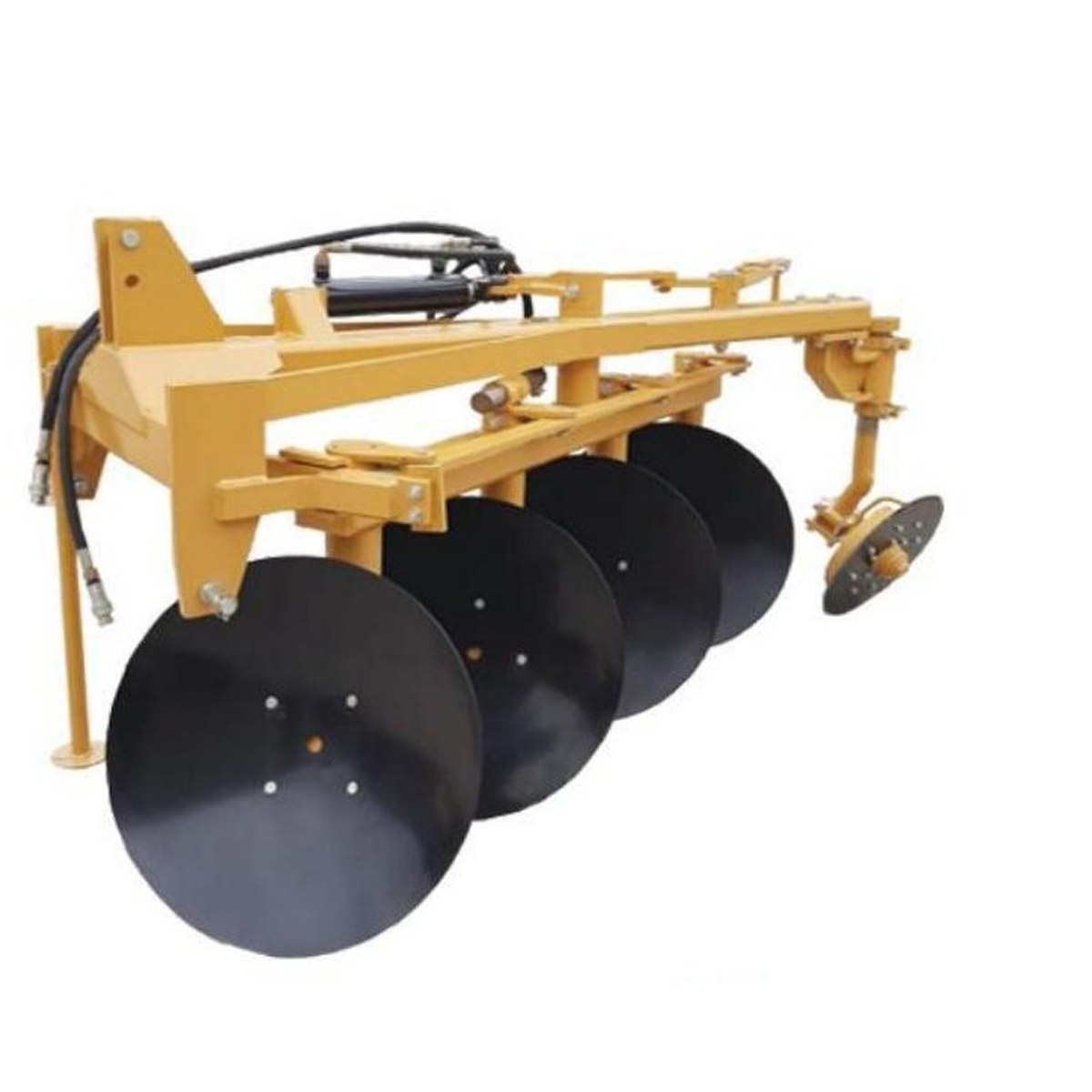

Hydraulic Reversible Disc Plough
Contact for Price
-
Model
1LY(SX)-325
1LY(SX)-425
1LY(SX)-525
Parameters
| Required Tractor Power | 50-150 hp |
|---|---|
| Working Width | 750-1250 mm |
| Weight | 600-820 kg |
| Working Depth | 250-300 mm |
| Disc Diameter | 660 mm |
| Disc Quantity | 3-5 |
| Linkage | Cat II Mounted |
