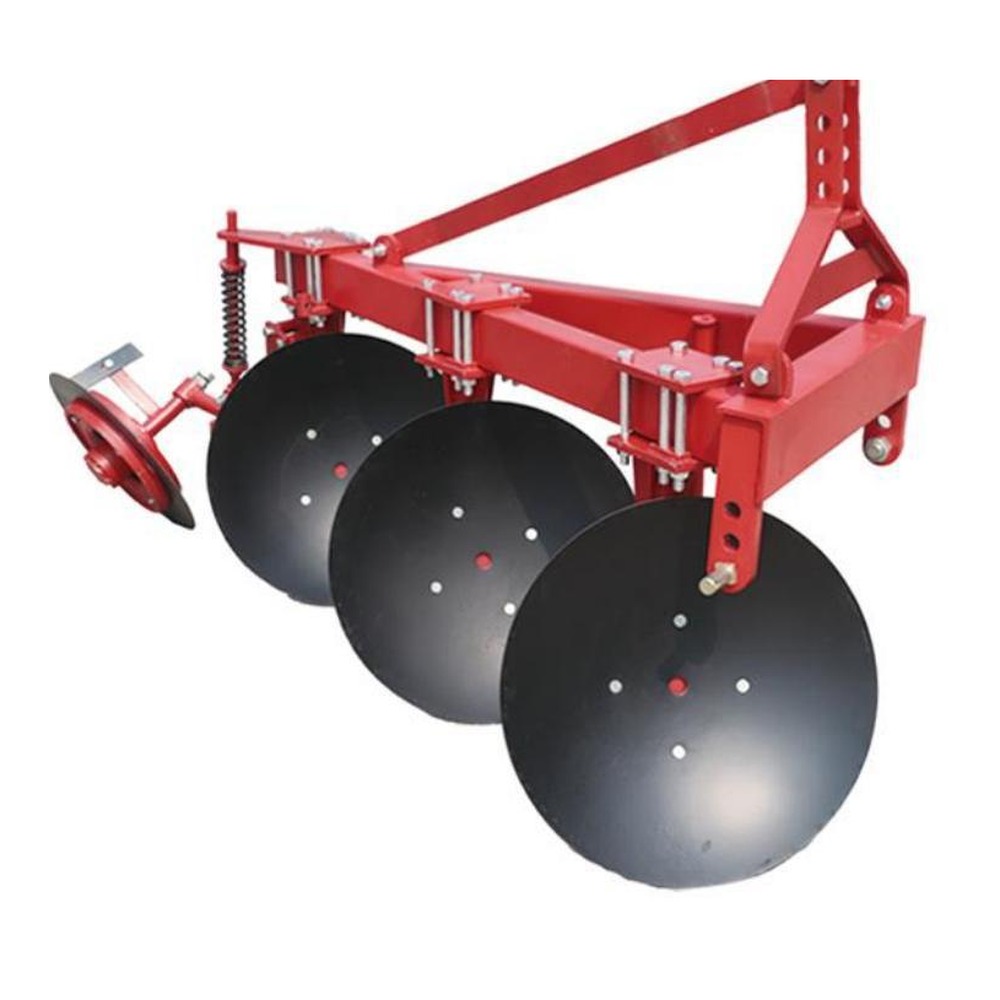

The Single-way disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation. The mounted disc plow is especially suitable for cultivation on the land which have weeds, stems and frictional soil with small brick etc.
Specifications
| Model | 1LYQ-220 | 1LYQ-320 | 1LYQ-420 | 1LYQ-520 | 1LY(T)-325 | 1LY(T)-425 | 1LY(T)-525 | 1LY(T)-625 |
|---|---|---|---|---|---|---|---|---|
| Working Width (mm) | 400 | 600 | 800 | 1000 | 750 | 1000 | 1250 | 1500 |
| Working Depth (mm) | 200 | 250-300 | ||||||
| Disc Diameter (mm) | 510 | 510 | 510 | 510 | 660 | |||
| Disc Quantity | 2 | 3 | 4 | 5 | 3 | 4 | 5 | 6 |
| Weight (kg) | 140 | 190 | 240 | 300 | 420 | 490 | 560 | 640 |
| Tractor Power (hp) | 18 | 25-40 | 40 | 50-70 | 50-75 | 80-110 | 120 | 160 |
| Linkage | Cat I Mounted | Cat II Mounted | ||||||
